Shineye Mach Co., Ltd. is one of the leading manufacturers and suppliers of Fiber Cement Board Making Machine in China. If you're going to buy the newest Fiber Cement Board Making Machine made in China, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
Fiber Cement Board Making Machine
Product Overview
A Fiber Cement Board Making Machine produces fiber cement boards through a one-time molding process. No high temperature. No high pressure. The production line runs with high mechanical precision. It needs fewer workers than traditional methods. No waste water, waste gas, or waste residue comes out during production. Eight systems make up this line: material storage, polystyrene particle pre-delivery, automatic feeding, sandwich material mixing, molding machine, pouring system, mold circulation, and product casting molding. It can produce calcium silicate cement fiber pressure plate sandwich composite boards.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | max 2,000 pieces per shift (8 hours) |
| Automatic Degree | Simple / semi-automatic / high automatic / full automatic |
| Raw Materials | MgO, MgCl₂, perlite, wood chip, cellulose fiber, quartz sand, Portland cement |
| Finished Board Size | 3-40 mm thickness; up to 3600 mm length |
| Standard Size | 1220×2440 mm / 1200×2400 mm |
| Maximum Width | 1220 mm |
| Maximum Length | 3000 mm |
| Thickness Range | 4-25 mm |
| Density | 1.5-1.7 g/cm³ / 1.2-1.4 g/cm³ / 1.4-1.5 g/cm³ |
| Annual Output Reference | 5 million boards |
| Key Feature | Environmental friendly materials |
Key Advantages
Low-pressure mixing head:Small and portable design. No moving parts in the mix zone. No wear. No clogging.No spare parts needed for this section. Mixing quality is better than high-pressure designs.
Double mezzanine material tank: The tank is airtight to keep raw materials fresh. It is designed with a spiral penstock and can heat and cool quickly and smoothly.
Inverter and precise metering pump control: Material flow ratio can be easily set with a large adjustable range. Circle flow and injection have separate speed control to maintain consistent injection quantity during operation.
Stainless filter: The filter can be removed and cleaned easily. Filtering impurities from raw materials increases pump operating life.
Auto-washing equipment: Designed for long life operation. It can work independently even when electricity is shut down, ensuring the mixing head does not become blocked.
Auto material feeding system: Automatically checks and feeds raw materials to the tank to sustain supply.
Swing spray system:Resin spreads evenly across the whole panel. Foam density stays consistent.
Performance & Applications
This fiber cement board has excellent properties including:
- Waterproofing and fireproofing
- Antisepsis and moth-proofing
- Good acoustic insulation and weather resistance
- Good thermal and heat insulation
- Durability and long lifetime
It can be used for:
- Exterior decoration panel
- Integrative facade panel for exterior wall thermal insulation
- Interior wall decoration panel
- Flooring for loft interlayer, container house, light steel villa
- Subway, tunnel, baseboard, outdoor furniture
- Roofing sheet
- Thinner lining board for stone
About the Supplier
in one-stop service

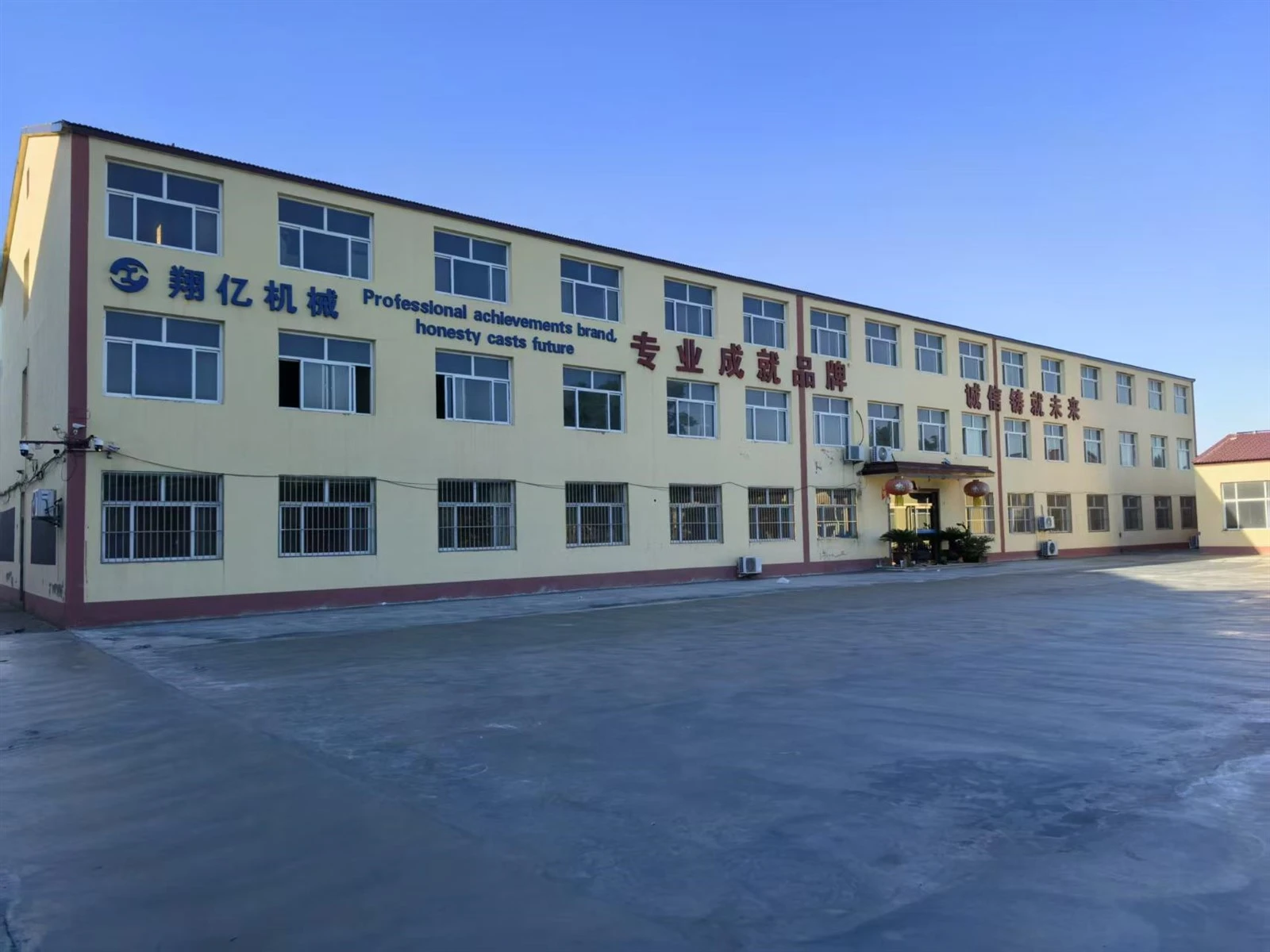

Hebei Xiangyi Mechanical Co., Ltd. has been making these machines since 2002 【– that is 24 years】. The factory covers 25,000 square meters. Over 100 people work here. We run more than 50 machine tools. The company holds CE approval and ISO 9001 certification.
Services Provided
Plant layout, machinery diagram, and equipment list are provided for free.
24-hour support is available. When you need help, just contact us.
All support for raw material supplier information is supplied.
Production, installation, and electrical engineers stay at your plant until your workers know how to produce qualified products.
After installation, the production line is tested. An agreement is signed with your worker after successful testing.
FAQ
Contact
For more details, please contact:
Jessica Li
Phone / WhatsApp: +86 18132648037
Email:
xiangyijixielucia@yeah.net
Factory Address: North of Dongzicheng Village, Circular Economy Industrial Zone, Jinzhou City, Hebei Province, China
