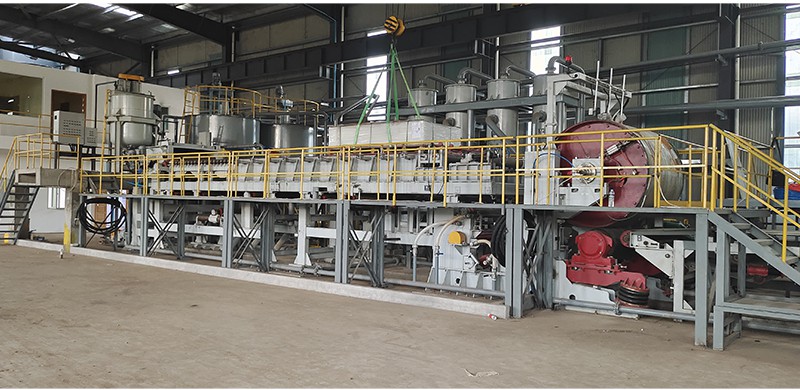

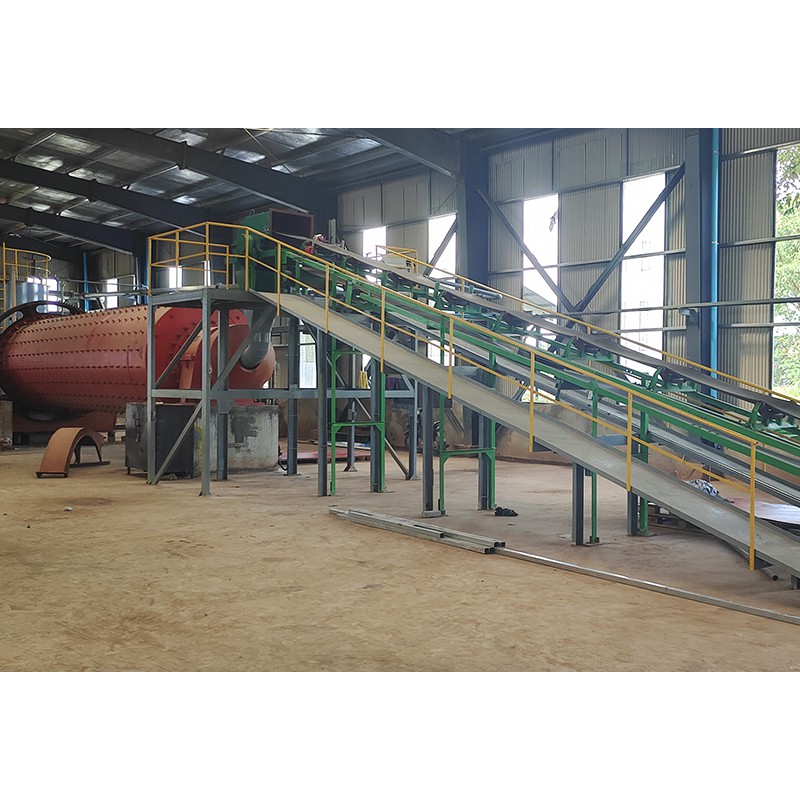

Shineye Mach Co., Ltd. is one of the leading manufacturers and suppliers of precision pressing calcium silicate board production line in China. If you're going to buy the newest precision pressing calcium silicate board production line made in China, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
Why Precision Pressing Matters
Most calcium silicate board lines focus on the final product specs - density, strength, fire rating. This line focuses on how you get there.
The difference is in the pressing stage. Ordinary presses apply force, but often unevenly. The result: boards with hidden density variations, weak spots, or warped surfaces. Our precision hydraulic pressing system applies controlled, uniform pressure across the entire board surface. Every slab comes out flat, dense, and consistent - batch after batch.
What This Line Produces

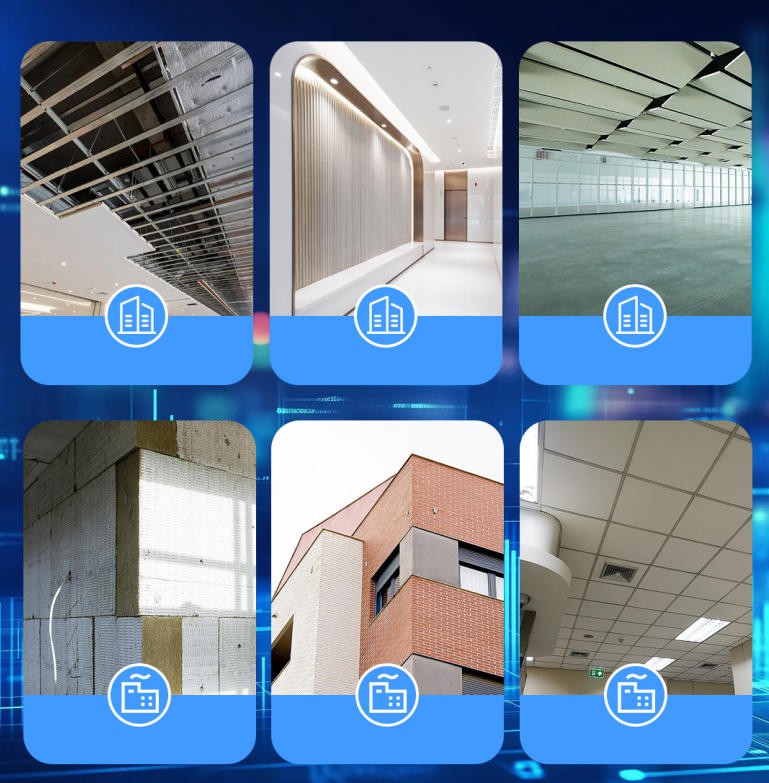

These boards are built for demanding applications:
● Interior/exterior wall decoration
● Ceiling engineering and partition walls
● Fireproof boards and sound insulation panels
● Residential, commercial, and industrial buildings
Key Performance Indicators
● Compressive strength ≥10.0 MPa
● Excellent sound insulation and moisture resistance
Inside the Precision Pressing Process
Raw Material Preparation
High-purity calcium silicate, quartz sand, reinforcing fibers, admixtures, and water are batched and mixed. The PLC control system ensures the ratio is accurate to within ±0.5%.
Precision Pressing - The Core Difference
A high-precision hydraulic pressing system with adjustable pressure settings applies force evenly across the entire mold. Why does this matter?
|
Conventional Pressing |
Precision Pressing |
|
Pressure varies across the board surface |
Uniform pressure distribution |
|
Density inconsistencies and weak spots |
Consistent density throughout |
|
Boards may warp or crack after curing |
Flat, stable boards with no hidden defects |
High-Temperature Curing
A high-temperature, high-pressure curing chamber improves the crystallization degree of calcium silicate - directly enhancing fire resistance, moisture resistance, and long-term durability.
Finishing and Inspection
Boards are cut, polished, and inspected. Key components (pressing dies, hydraulic cylinders, cutting tools) are made of high-strength wear-resistant materials, so the line keeps running with minimal downtime.
Technical Specifications
|
Specification |
Value |
|
Annual output |
350,000 – 1,400,000 m² |
|
Board thickness |
10 – 40 mm |
|
Board size |
1220×2440 mm / 1220×3000 mm (customizable) |
|
Board density |
1.5 – 1.8 g/cm³ |
|
Automation level |
50% – 100% (semi-auto / fully auto) |
What Makes This Line Different
It's not just about making boards. It's about making every board the same.
In high-end construction projects, board-to-board consistency is critical. A 0.1 mm thickness variation might not matter for a partition wall - but for precision cladding or fire-rated assemblies, it's a problem.
This line solves that through:
1. Closed-loop pressure control - sensors monitor actual pressure across the platen and adjust in real time
2. Intelligent parameter management - batching ratios, pressing pressure, curing temperature, and cutting sizes are all tracked and logged
3. Wear-resistant tooling - dies and cylinders last longer, so pressure accuracy doesn't drift over time
The result: boards that meet national building material standards - every batch, every shift, every day.
Configuration Options
|
Automation Level |
Best For |
|
50% semi-automatic |
Smaller production runs, lower initial investment |
|
100% fully automatic |
High-volume continuous production, minimal labor |
Custom board sizes and thicknesses are available on request.
